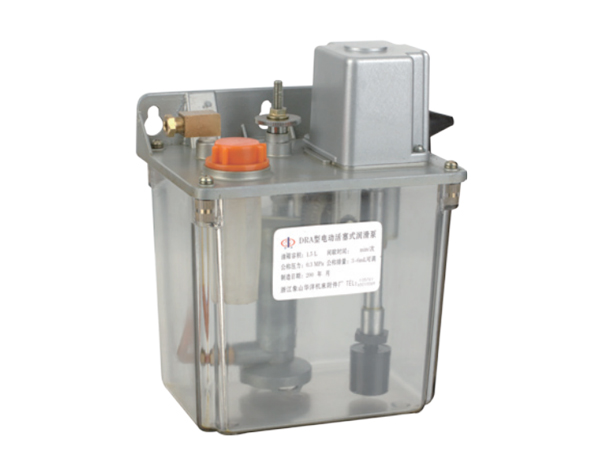

Product Name: Automatic Intermittent Lubrication Pump Model Number: HY8318.2 Brand Name: Huayang Executive Standard: Material: Surfaced Process: Place of Origin: Zhejiang, China (Mainland)
Usage and characteristics
◇ This pump adopts machinery intermittent mechanism with AC220V miniature synchronous motor independent power supply.
◇Drive the different speed ratio gear to slow down, fixed the cycle between the oil supply and interm ittent time.
◇The manual tie bar can adjust the oil mass, also can supply the oil by hand when debugging.
◇ It is easy operation and reliable performance. A correct demand for fixed-quantity lubrication to lubrication point, it can be equipped to use together with products of this series D1, D2 (HAS, HJB MODEL) measurement device and TL type joint.
◇ The main oil pipe for supply system can be reached by 6m length and 3m height.
◇Available for lubrication point, assign oil to each lubrication points according to the total amount of the oil pump output.
◇ Types of lubricants: N22# ～ 68# machine oil.
Technical parameter
| Model | Parameter items | |||||||
| Nominal pressure | Nominal displacement (Adjustable) | Tank capacity | Oil feed intermittent | Synchronous machine parameters | ||||
| 電壓 V | 功率 W | 頻率 Hz | 轉速 r/min | |||||
| HY8318.2\DRA | 0.3Mpa | 3~6ML/ 次 | 1.8L | 4,6,12,24,60Min | AC220 | 5 | 50 | 15,10,5,2.5,1 |

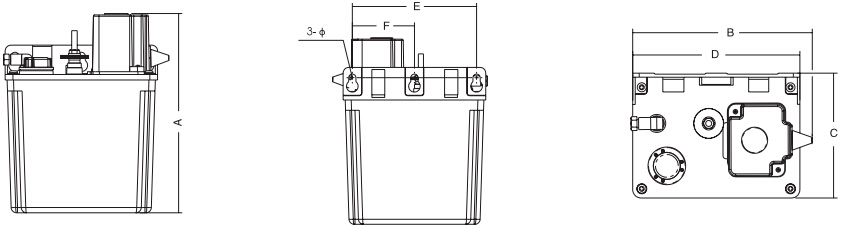

Profile and installation dimensions
| Main dimensions | ||||||
| A | B | C | D | E | F | 3-φ |
| 217.5 | 179 | 124.5 | 166.5 | 145 | 72.5 | 7 |
